PMDC motor is made of Permanent Magnets and is known as Permanent Magnet DC MOTOR. In a PMDC Motor, perpetual magnets (situated in stator) give attractive field, rather than stator winding. The stator is typically produced using steel in round and hollow frame. PMDC Motor is broadly utilized where little power appraisals are required, e.g. in toys, Printing Machines, Computer Disk drives and so on.  PMDC motor is mainly used in automobiles to operate windshield wipers and washers, to raise the lower windows, to drive blowers for heaters and air conditioners etc. PMDC  motor is also used in computer drives. Permanent Magnet DC  motor is also used in toy industries. PMDC motor is used in electric toothbrushes, portable vacuum cleaners, food mixers.  Permanent Magnet DC motor is also used in a portable electric tool such as drilling machines, hedge trimmers.

QUALITY CONTROL OF PMDC MOTOR ( Permanent Magnet DC motor)

  • Magnet Testing
  • Ultrasonic Flaw Detector
  • Armature Testing on Machine
  • Dynamometer Testing
  • Endurance Testing

We offer a range of PMDC motors for various applications

PMDC Motors A 60 Series

Permanent Magnet DC Motors A 60 SERIES

Features

Permanent magnetsPower supply: 12V to 220V dc
No of Pole : 2Power Output : from 15W up to 75W
Duty : S1-S2-S3Brush Houseing : totally encloused / fast Replacement / external column
Protection Class : IP20-IP44Electromegnetic brake available

Specification

TYPEIECABCDEFHJKLMNPQR
B3-9980401123-50-5377100 to 150----63 to 72
B556---9207.5---100801202.5
63---11239.5---115951403.5
B1456---920M5---6550-2.5
63---1123M5---7560-3

PMDC Motors A 80 Series

Permanent Magnet DC Motors A 80 SERIES

Features

Permanent magnetsPower supply: 12V to 220V dc
No of Pole : 2Power Output : from 45W up to 200W
Duty : S1-S2-S3Brush Houseing : totally encloused / fast Replacement / external column
Protection Class : IP20-IP44Electromegnetic brake available

Specification

TYPEIECABCDEFHJKLMNPQR
B3-9980401123-50-5377----
B556---9207.5---100801202.5
63---11239.5---100 to 150115951403.578 to 84
B1456---920M5---6550-2.5
63---1123M5---7560-3

PMDC Motors A 90 Series

Permanent magnet DC Motors A 90 SERIES

Features

Permanent magnetsPower supply: 12V to 220V dc
No of Pole : 2Power Output : from 90W up to 250W
Duty : S1-S2-S3Brush Houseing : totally encloused / fast Replacement / external column
Protection Class : IP20-IP44Electromegnetic brake available

Specification

TYPEIECABCDEFHJKLMNPQR
B3-9980401123-50-5377111 to 187----90 to 94
B556---9207.5---100801202.5
63---11239.5---115951403.5
B1456---920M5---6550-2.5
63---1123M5---7560-3

PMDC Motors B114 Series

Permanent magnet DC Motors B114 SERIES

Features

Permanent magnetsPower supply: 12V to 220V dc
No of Pole : 2Power Output : from 200W up to 750W
Duty : S1-S2-S3Brush Houseing : totally encloused / fast Replacement / external column
Protection Class : IP20-IP44Electromegnetic brake available

Specification

TYPEIECABCDEFHJKLMNPQR
B37111290451430-718.514142 to 265----114
B563---11239.5---115951403
71---14309.5---1301101603.5
B1463---1123M5---7560-3
71---1430M5---8570-2.5

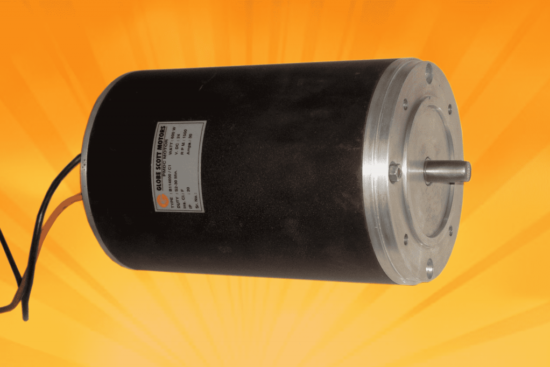

PMDC Motors D144 Series

Permanent magnet DC Motors D144 SERIES

Features

Permanent magnetsPower supply: 12V-24V-36V-48V
No of Pole : 2 & 4Power Output : from 500W up to 1500W
Duty : S1-S2-S3Brush Houseing : totally encloused / fast Replacement / external column
Protection Class : IP20-IP44Electromegnetic brake available

Specification

TYPEIECABCDEFHJKLMNPQR
B380125100501940-8099164 to 256----144.5
B580---194012---1651302003.5
B1471---1940M6---10080-3

Motors are available with following options :

IRS Wound Field Motor

Electromagnetic Brakes

IRS Wound Field Motor

Encoders

IRS Wound Field Motor

Reduction Gears

IRS Wound Field Motor

Electronic Controls

IRS Wound Field Motor

EMI Suppression Filters
